JD1912 Switch Model Automotive Power Relay 12v 70a

Name: JD1912 Switch Model Automotive Power Relay 12v 70a
Brand: Mirote
Price: 1 USD

Quality JD1912 Switch Model Automotive Power Relay 12v 70a wholesale

Brand Name : Mirote

Model Number : HY278

Place of Origin : Ningbo, Zhejiang

MOQ : 100

Price : Negotiation

Payment Terms : T/T, , L/C, D/P

Supply Ability : 5000000pcs per month

Delivery Time : 20-35 WORK DAYS

Packaging Details : 25pcs/box, 500pcs/CTN

Kind : Relay

Voltage : 12V

Dimension : 1.57 x 1.57 x 2.36 inches

OE : JD1912

Pins : 4

Fit : Universal

Weight : 43g

Contact Now

Relay 12V 4Pin Car Relay 70A Truck Boat Van Vehicle Automotive Relay JD1912 Switch Model

1. Specification

This relay is a General-purpose Relay with DC coil, has SPST-NO (1NO) AgNi0.15 contact, cover with mounting bracket protection category. High resistance to inrush current. High continuous DC current capacity.

Contact Material	Silver Alloy
Contact Resistance	100mΩ Max
Operate Time	10msec.Max
Release Time	100mΩ Min.(DC500W)
Insulation Time	100mΩ Min.(DC500W)
Electrical Life	10000000 times
Mechanical Life	100000times
Temperature	-40℃~+125℃
Weight	Around 43g
Coil& Contacts Dielectric Strength	AC 500V, 50/60Hz 1min
Open Contacts Dielectric Strength	AC 500V, 50/60Hz 1min

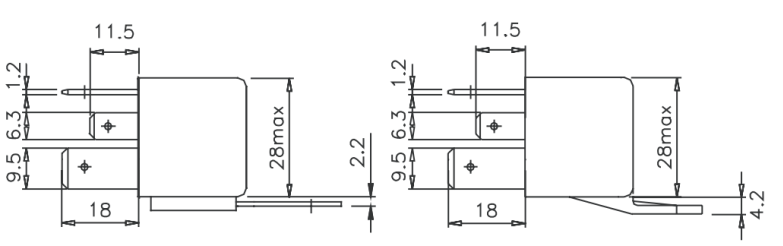

2.Details

JD1912 Switch Model Automotive Power Relay 12v 70a

3.Guarantee

To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.

4.Sample Policy

To enhance more understanding of each other and our products,we’d like to provide the sample free to you for testing.

5.Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

6. Delivery time
Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
